Wholesale Large Size Steel Pipe Low Clearance Rotary Cutter For Steel Pipe Cutting Up to 18 Inch (H18S) Manufacture
- Model
- H18S
Item specifics
- Capacity
- manual for 16 inch to 18 inch pipe cutting
- Cutting Type
- cold cutting without spark
- Color
- red and yellow for option, customized color available
Review
Description
Description
1. Cold cutting: no spark， no big heat
2. Environmentally friendly: no debris when cutting process
3. Use for the already installed pipe fittings.
4. Squeezing cutting with better working performance
5. Cutting blade is interchangeable with Reed.
6. The low profile design of H18S manual pipe cutter needs only 5 inch (127 mm) clearance for up to 18 inch pipe diameter.
Featuring

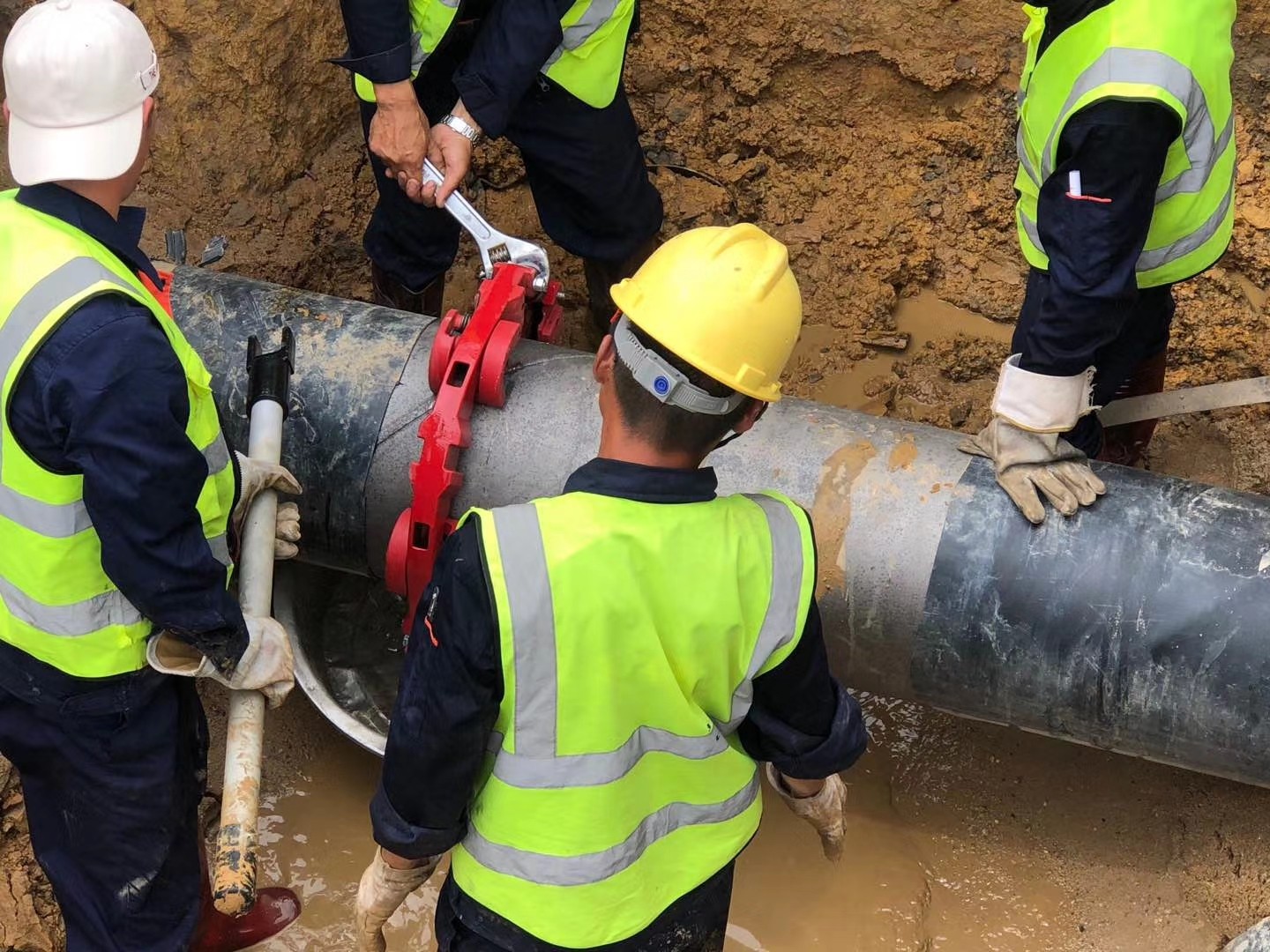

H18S manual pipe cutter provides a square cut and can be used in close quarters anywhere – in the ditch,underwater, in noise-free zones, over head, in racks of pipes, etc.
H18S manual pipe cutter operates with minimal cutter rotation (45 degree).

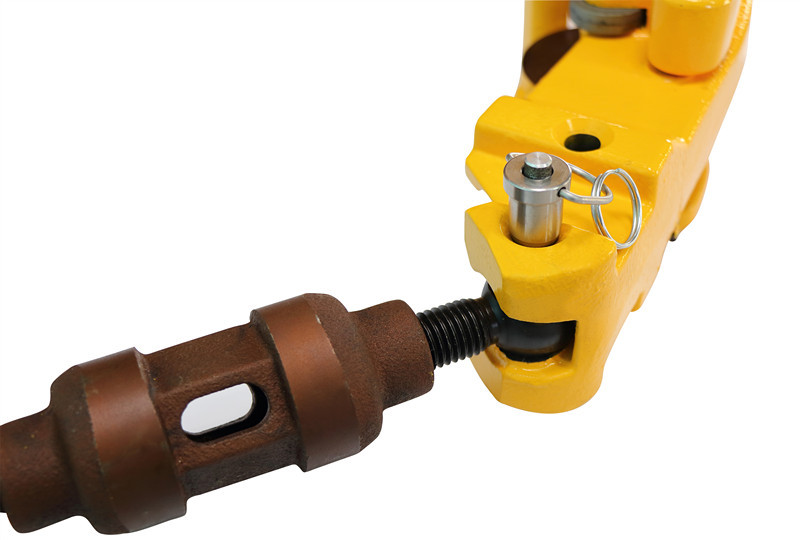

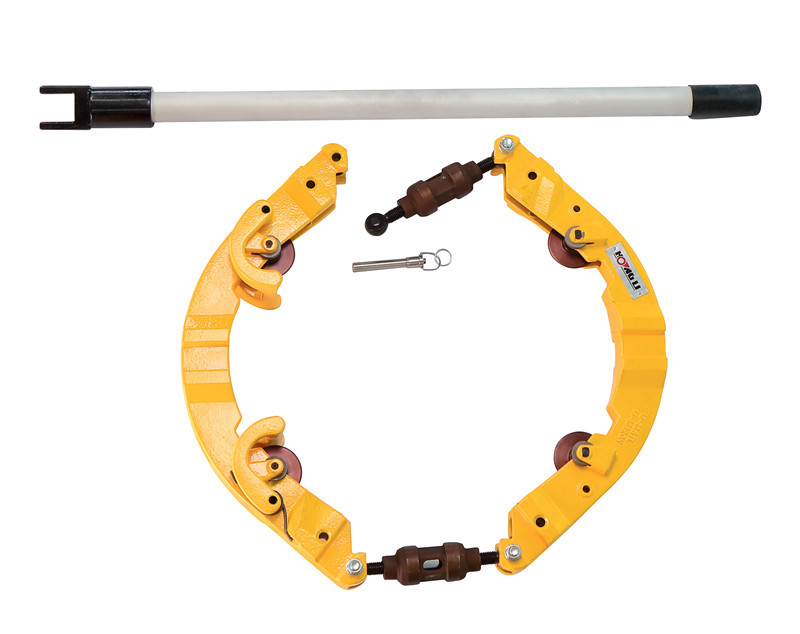

H18S manual pipe cutter is supplied with a slip-on handle that is used to turn and tighten the cutter.
With good leverage from the tool's long handle, pipe snaps off squarely before the cutter wheels penetrate halfway through the pipe.
Safe, clean, straight cuts are easy with these manual-operated cutters.
Cold cut large diameter steel pipe in close quarters.
Suitable to cut steel pipe, cast iron Pipe, galvanized pipe, ductile iron pipe and black iron pipe.
For steel pipe,galvanized pipe and black iron pipe |
For ductile iron pipe and cast iron pipe
|
|||||
|
Catalog No.
|
Item Model
|
Type of Model
|
Pipe Size | Wall Thickness |
Pipe Size
|
Wall Thickness |
|
|
|
|
6.35mm-14.3mm (Sch10/40) |
|
4.77mm-9.5mm | |
|
Catalog No.
|
Item Model
|
Capacity | N.W | G.W |
Packing Size
|
Package
|
|
311206
|
H18S
|
16"-18" | 31 kgs | 43 kgs |
101*53*20cm
|
1 pcs/ plywood case
|
