1/4"-4" Electric Pipe Threading Machine China (SQ100F)
- Model
- SQ100F
Item specifics
- Motor
- 1500W 220V 50HZ
- Speed
- 36/20/11 RPM.
- G.W (Kg)
- 175kgs
- Brand Name
- Hongli
- OEM available or not
- Yes , OEM available
Review
Description
SQ100F 1/4"-4" Electric Pipe Threading Machine China
Electric Pipe Threading Machine Features
1. An induction motor ensures sound levels well when using.
2. A special capacitor-start / capacitor run motor allows the machine to thread where voltage drop is experienced.
3. ¼”-2” universal Die Head; 2½”-4” receding die head allows cutting of tapered or straight NPT / NPSM or BSPT / BSPP threads.
4. Approved by CSA and CE standards.
Electric Pipe Threading Machine Specifications
- *Motor: 1500 W induction, 50/60 Hz,single phase.
- *Switch: ON/OFF heavy duty switch, foot switch and FOR/OFF/REV switch is optional
- *Spindle Speed: 36/20/11 RPM.
- *Front Chuck: Hammer type with replaceable rocker action jaw inserts.
- *Rear Centering Device: Cam action.
- *Oiling System: Through die head, with integral oil reservoir.
Electric Pipe Threading Machine Standard Equipment
- *Model SQ100F threading machine.
- *Self-open die head, 1/4”-2”
- *Receding self-open die head, 2 1/2”-4”½”-¾” universal HSS dies set.
- *1”-2” universal HSS dies set.
- *2 1/2”-4” universal HSS dies set.
- *Cutter: Capacity: 1/4”-4”(6 mm-100 mm) pipe
- *Reamer: Positive-locking, right-hand 1/4”-4”(6 mm-100 m
Ordering Information
Accessories

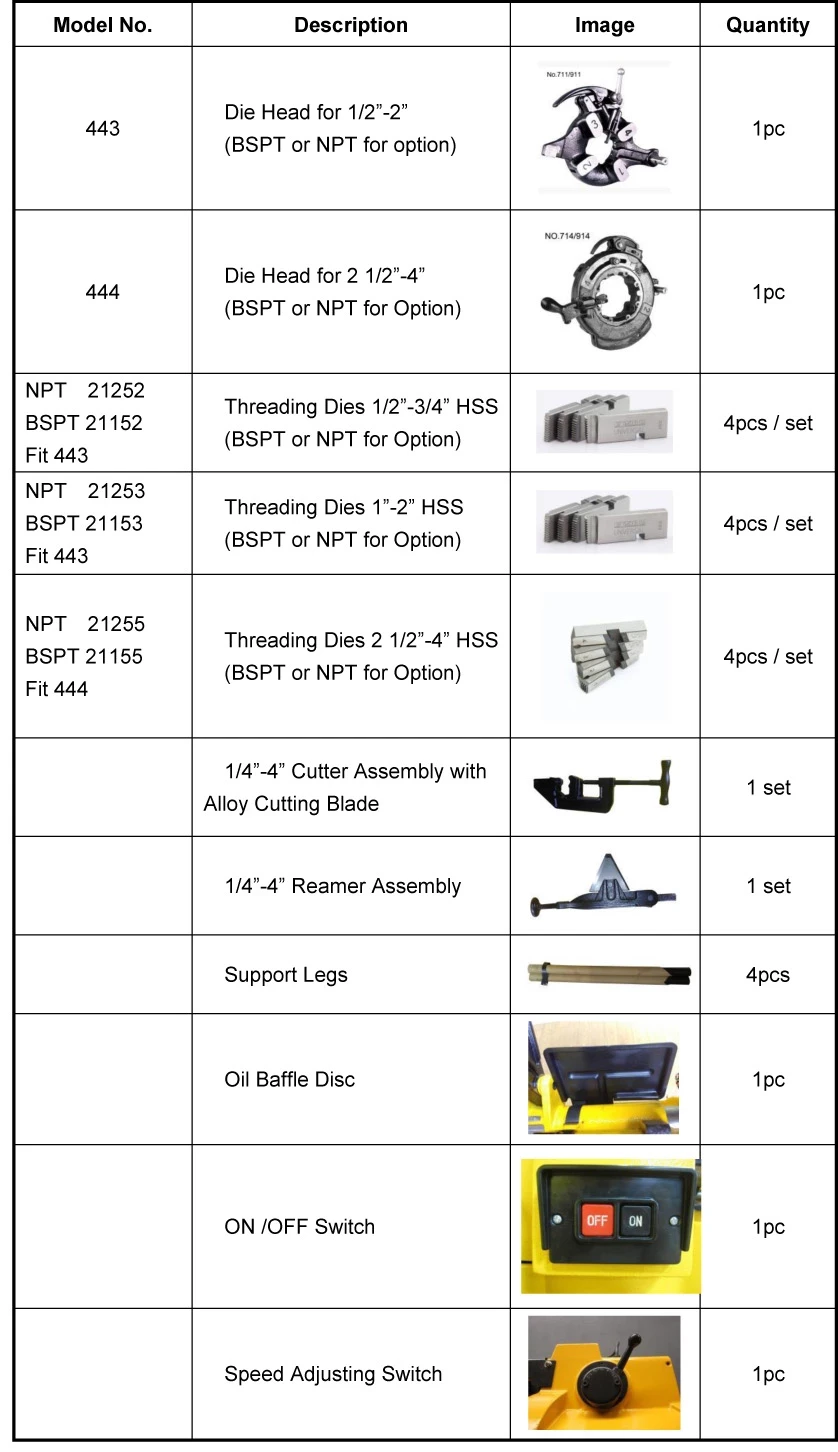

Standard Spares for SQ100F Electric Pipe Threading Machine
Optional Spares for Electric Pipe Threading Machine
Electric Pipe Threading Machine Packing
